LYHFS

LYHFS panel radiators are ceramic infrared radiators, which are designed for medium surface ratings up to 38.4 kW/m² and operating temperatures up to 630 °C.

HFS series radiators are made using a hollow casting ceramic process. Compared to ceramic IR radiators produced using the full-pour casting process, HFS radiators have a considerably shorter heating-up time.

This technique was successfully used first for HFS radiators and then further developed for subsequent models.

HFS panel radiators are available in four designs and cover the power range from 60 W to 600 W.

HFS panel radiators have customary market dimensions and can therefore be replaced with  radiators with the relevant properties if the requirements change.

Purpose/function

Textur

High Quality Ceramic

Technical Parameters

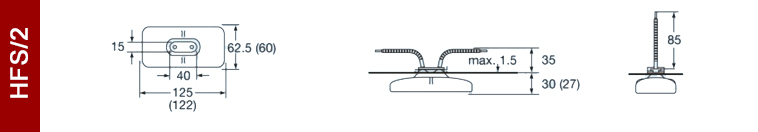

More size of HTS Panel Radiators

Standard Design

Operating voltage 230 V Ceramic hollow casting Integrated thermal insulation Leads 120 mm
Laiyuan standard Socket Mounting set

Thermocouple radiators

Designation HTS, HTS/1, HTS/2,
HTS/4
Integrated thermocouple
Type K (NiCr-Ni)

Type J (Fe-CuNi)

TC leads 100 mm

Variants

Special wattages
Special voltages
Extended leads
Leads with ring terminal
