LYHTS

1. Uniform and constant heating
2. Natural night sleep thanks to absence of light emissions
3. Easy to install, without needing any maintenance
4. Easy to clean

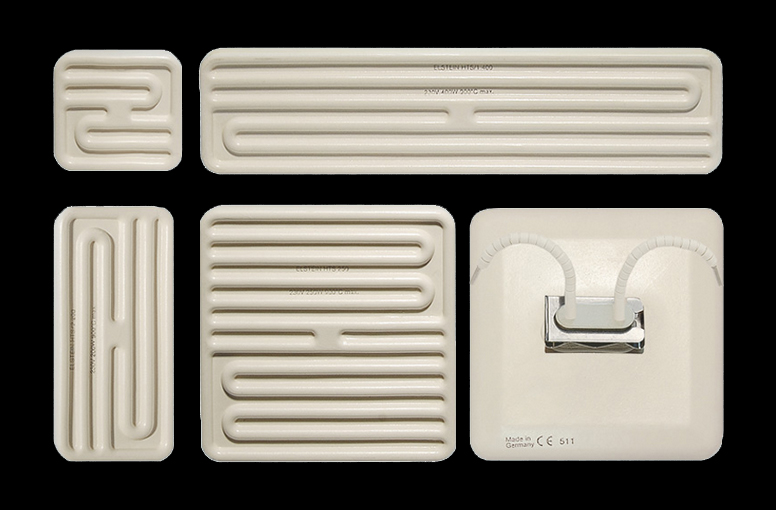

LYHTS high temperature radiators are ceramic infrared panel radiators, which can be used for operating temperatures up to 860 °C and surface ratings up to 64 kW/m².

HTS series radiators are produced using a hollow- casting ceramic process and are filled with thermal insulation material. This improves the radiant power output to the material to be heated.

Furthermore, there is a significant reduction in heat dissipated in the wiring space, so that additional insulation of the heating area is usually not required.

Compared with IR radiators, which are produced using full-poured casting processes, HTS radiators have a considerably reduced heating-up time and, depending on the type of application, enable energy savings of up to 25 %.

HTS high temperature radiators are available in four designs and cover the power range from 60 W to 1000 W.

1. Pet health-care, nesting, swine
2. Therapeutic use, arthrists and rheumatism treatment
3. Anti moisture systems
4. Superb Baking and drying performance,more applicable in winter
5. Provide the reptiles to imitate the natural infrared sun and heat

Purpose/function

Texture

High Quality Ceramic

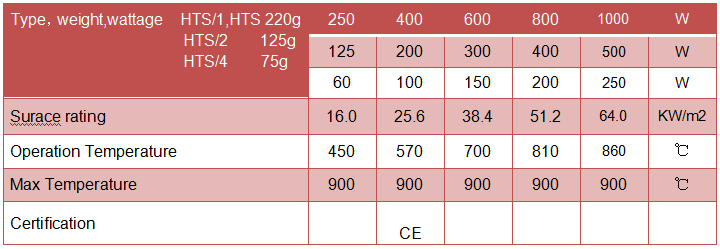

Technical Parameters

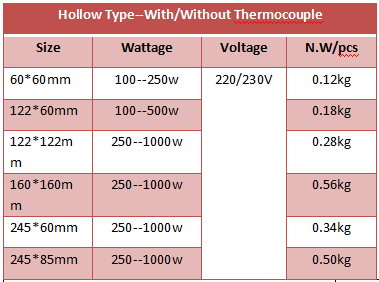

More size of HTS Panel Radiators

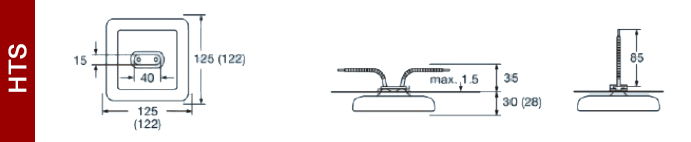

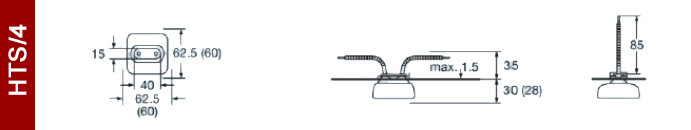

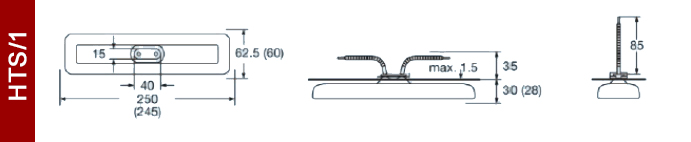

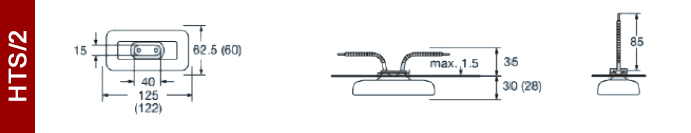

Standard Design

Operating voltage 230 V Ceramic hollow casting Integrated thermal insulation Leads 120 mm
Laiyuan standard Socket Mounting set

Thermocouple radiators

Designation HTS, HTS/1, HTS/2,
HTS/4
Integrated thermocouple
Type K (NiCr-Ni)

Type J (Fe-CuNi)

TC leads 100 mm

Variants

Special wattages
Special voltages
Extended leads
Leads with ring terminal
